LEGACY 5-30x56 FFP

Hunters and PRS shooters alike can benefit from our Flagship range. The 5-30x56 magnification with our topline Japanese ED glass and 34mm tube allows perfect amounts of light to help you see EVERYTHING!

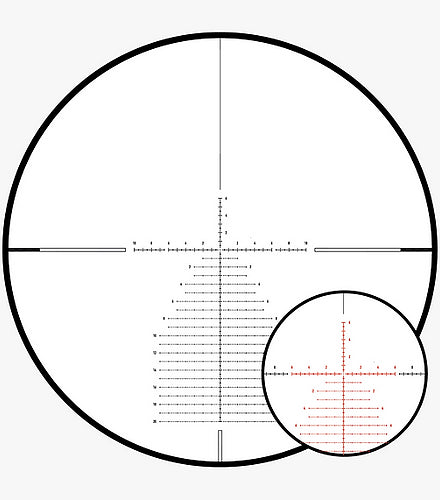

Legacy 5-30x56 is the ultimate optic for all your long-range needs, and on top of that the Illuminated ROA004 reticle will give you the edge in those low-light situations! Precision turrets and an easy adjustable zero stop allow you to easily return to zero no matter the situation!

Now available with MOA and MRAD reticles, the LEGACY 5-30x56 FFP is our workhorse, fit for any scenario - our LEGACY optic. Featuring our topline ED glass, superior turret system, a 34mm main tube, and a 56mm objective lens, this optic can be taken anywhere and will exceed expectations. Whether you're a long-distance hunter or an avid PRS or NRL shooter, the LEGACY 5-30x56 FFP will not let you down!

Torque Settings:
Ring Bases on Picattiny - 40in.lbs
Scope Mounts - 15-18in.lbs

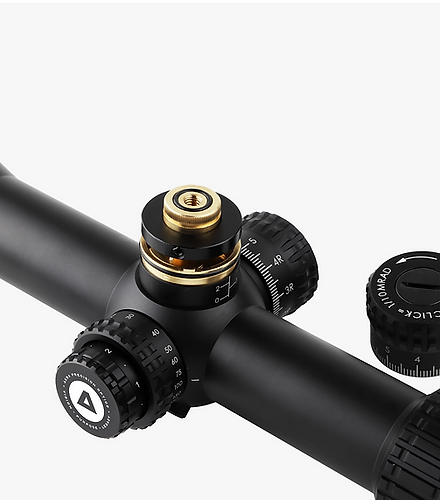

When your scope is mounted and levelled by your gunsmith, please remove the Zero Stop which is
located inside the Elevation turret before sighting in.

SPECIFICATIONS

Magnification - 5-25
Obejctive Lens Diameter - 56mm
Ocular Lens Diameter - 41.2mm
Number Of Lenses - 16
Body Tube Diameter - 34mm
Internal Spring Type - Spring
Length - 383mm
Weight - 1112g
Construction Material - A6061-T6
Windage Adjustment Range -
Elevation Adjustment Range - 29MIL
Click Value - 0.1MIL
Eye Relief - 3.7"
Exit Pupil - 11.2 - 2.24mm
Field Of View (FOV) - 24.1FT (4.6° - 0.782°)
Front Focal Plane - Yes
Ocular Outside Diameter - 45
Diopter Compensation - +2/-2
Resolution (Enter Axis) - 3.5'
Fogproof - Yes
Shockproof - Yes
Obejctive Filter - NA
Ocular Focus - Yes
Side Focus - Yes
Resolution (Off Axis) - NA

WHAT'S IN THE BOX:

- LEGACY 5-30x56 FFP MRAD Scope - 34mm Medium Picatinny Style Rings - Throw lever - Sunshade - Set of Scope Flip-up caps - Turret Tool *Illuminated Reticle - Uses CR 2032 battery (not included)
