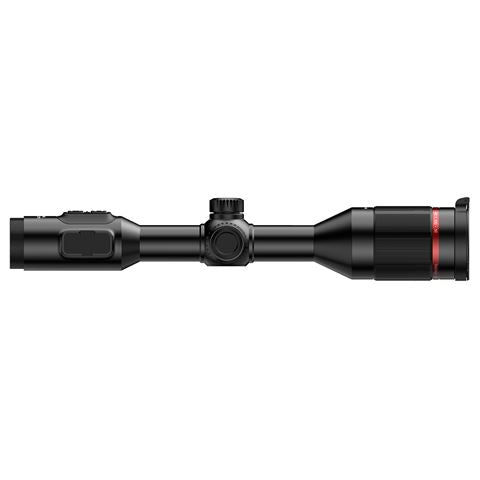

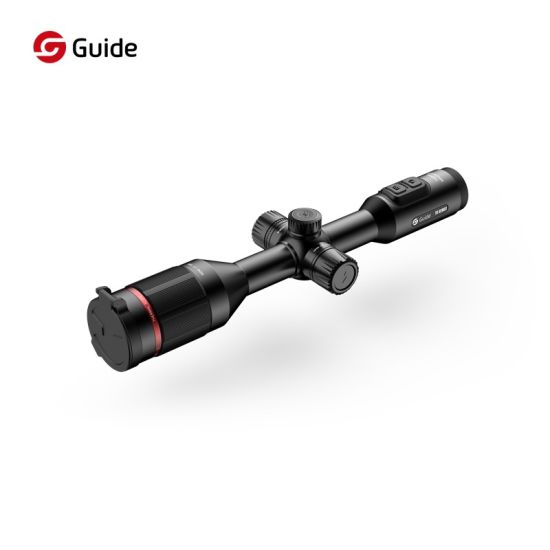

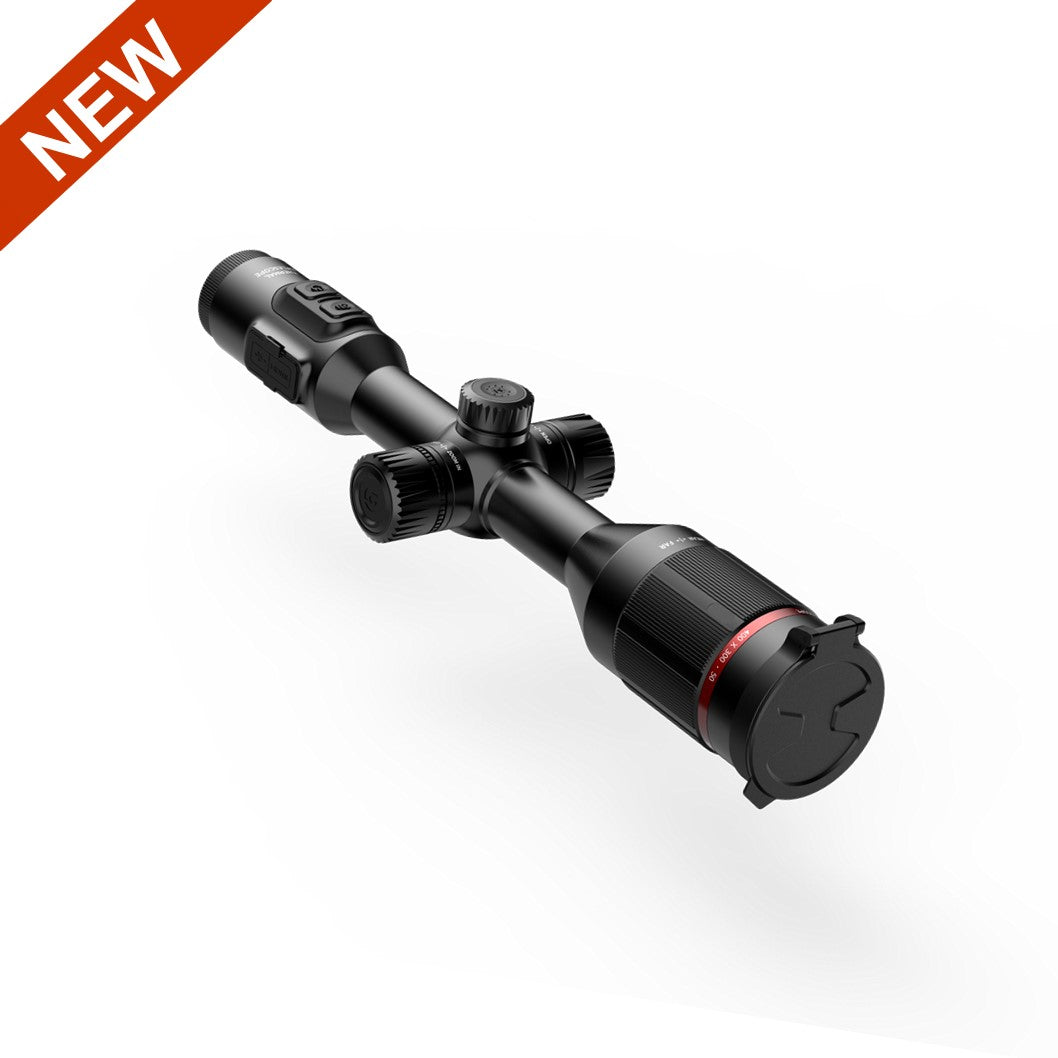

Model TU450
Detector
Detector Type 400×300@17μm, VOx
Spectral 8μm～14μm
NETD ≤50mk
Lens
Focal Length 25mm 35mm 50mm
Focusing Manual
FOV 15.49°×11.65° 11.1°×8.33° 7.78°×5.84°
Display
Display Screen Full-color 0.39'OLED screen，1024×768
Eyepiece Pupil distance of eyepiece 48mm，Eyepiece magnification 14×
Magnification 1.6×~6.4× 2.3×~9.2× 3.2×~12.8×
Imaging
Frame Rate 50Hz
Digital Zoom 1×~4× smooth zoom
Scene Modes Enhance, highlight, natural

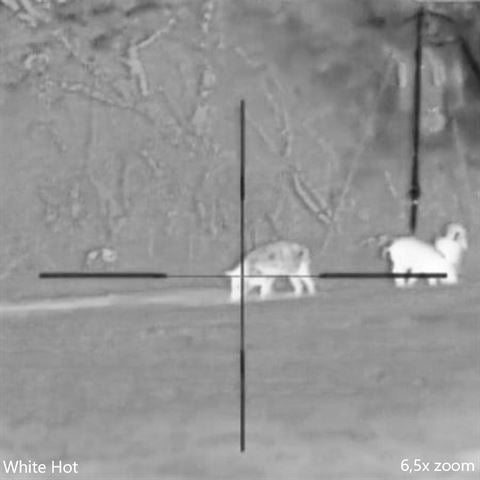

Color Palettes White hot, black hot,customized red hot, green hot, iron red, blue heat
Picture-in-picture on/off, the position is adjustable
Functions
Wi-Fi/APP Support Wi-Fi to share pictures and videos, connect to APP (IOS & Android) to control the device remotely
Compensation Modes Scene compensation, shutter compensation, automatic compensation
Zero Calibration 50m/100m/200m/300m/500m
Gun Type Selection 10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments
Reticle 10 reticle styles, 6 colors, 10 levels of brightness
Others Photo taking, video recording, hotspot tracking, Stadiametric rangefinder
Power Supply
Battery Type 1× internal Battery ＋ 1× external battery, rechargeable, change external battery without power cut off
Battery Operating Time Battery continuous working time ≥ 10hrs
Interface
USB Type-C, It can supply external power and charge, and can read the data of memory card
Video Interface Micro HDMI
Environmental Characteristics
Operating Temperature -30 ℃ ~ 50 ℃ (External power supply is required below -20℃)
Storage Temperature -45℃~70℃
Humidity Working and storage 10%～95%, non condensing
Shock 500G/1ms
Vibration 10Hz～150Hz～10Hz 0.15mm IEC60068-2-6
IP level IP67
Certificate RoHS, CE, FCC, EAC, UN38.3 (Battery certificate)
Physical Characteristics
Internal Storage 16G
Weight（excl battery） 930g 940g 950g
Dimensions (excl eye mask) 367×107×69mm 367×107×69mm 377×107×69mm
Package Contents
Standard Thermal Imaging Riflescope, TYPE-C Data Cable, Lens Cover, Adapter, Battery, Charger, Micro HDMI Video Cable, Eye Mask, Picatinny Tube Clip×2, Quick Start Guide
Optional Battery, Remote Control
Detection Range
Human：1.8m×0.5m 700m 1000m 1400m
Vehicle：2.3m×2.3m 1700m 2400m 3000m
Recognition Range
Human：1.8m×0.5m 350m 500m 700m
Vehicle：2.3m×2.3m 700m 1000m 1400m
