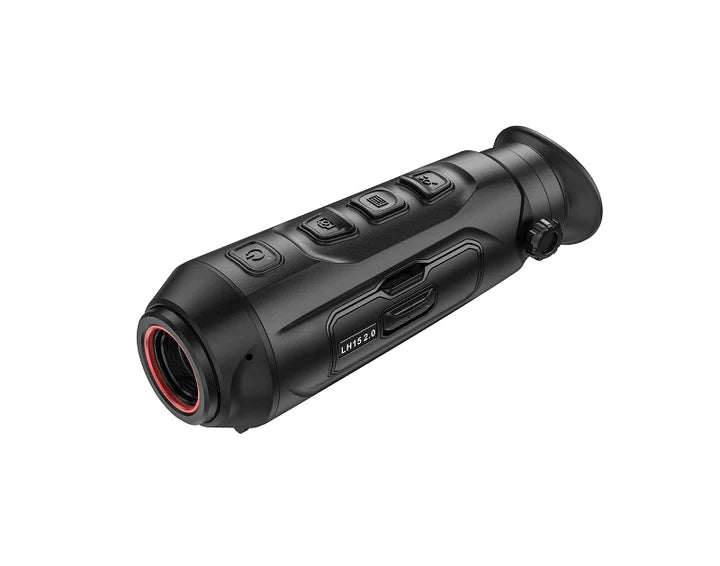

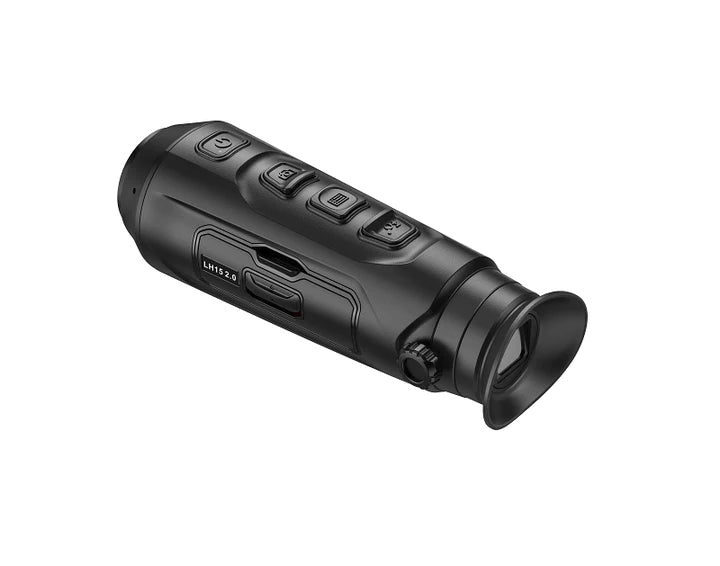

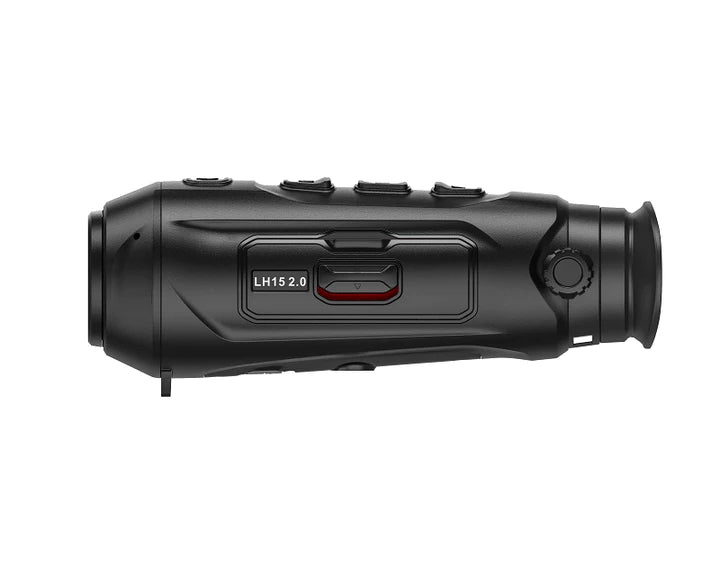

Lynx LH15 2.0 Handheld Thermal Monocular

Featuring an impressive field of view spanning 43 meters, equipped with 384 sensors, and boasting a 12-micrometer pixel pitch of high thermal sensitivity of NETD < 20mK, the LH15 2.0 is designed to elevate the excitement of every forest hunter with a manual focus feature. Not only that, but field hunters will also appreciate its remarkable detection range, reaching up to 750 meters.

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (Focal Length): 15 mm, f1.0
• Detection Range: 750 m
• Focusing Distance: 1.5 m
• Magnification: 1.4x to 11.2x (8x)
• Field of View (H × V), Degrees / m @ 100 m: 17.5° × 13.1°/30.8 m × 23.0 m

Image Display

• Display: 1024 × 768, 0.39-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm
• Eye Relief: 20 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement : Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time : 6.5-hour continuous running with CVBS and hotspot function off
• Type-C Power Supply: 5 VDC, 2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 164.0 mm × 56.0 mm× 60.8 mm
• Weight: 272 g without battery
• Working Temperature: -30°C to +55°C
