Technical Specification
Optical Characteristics

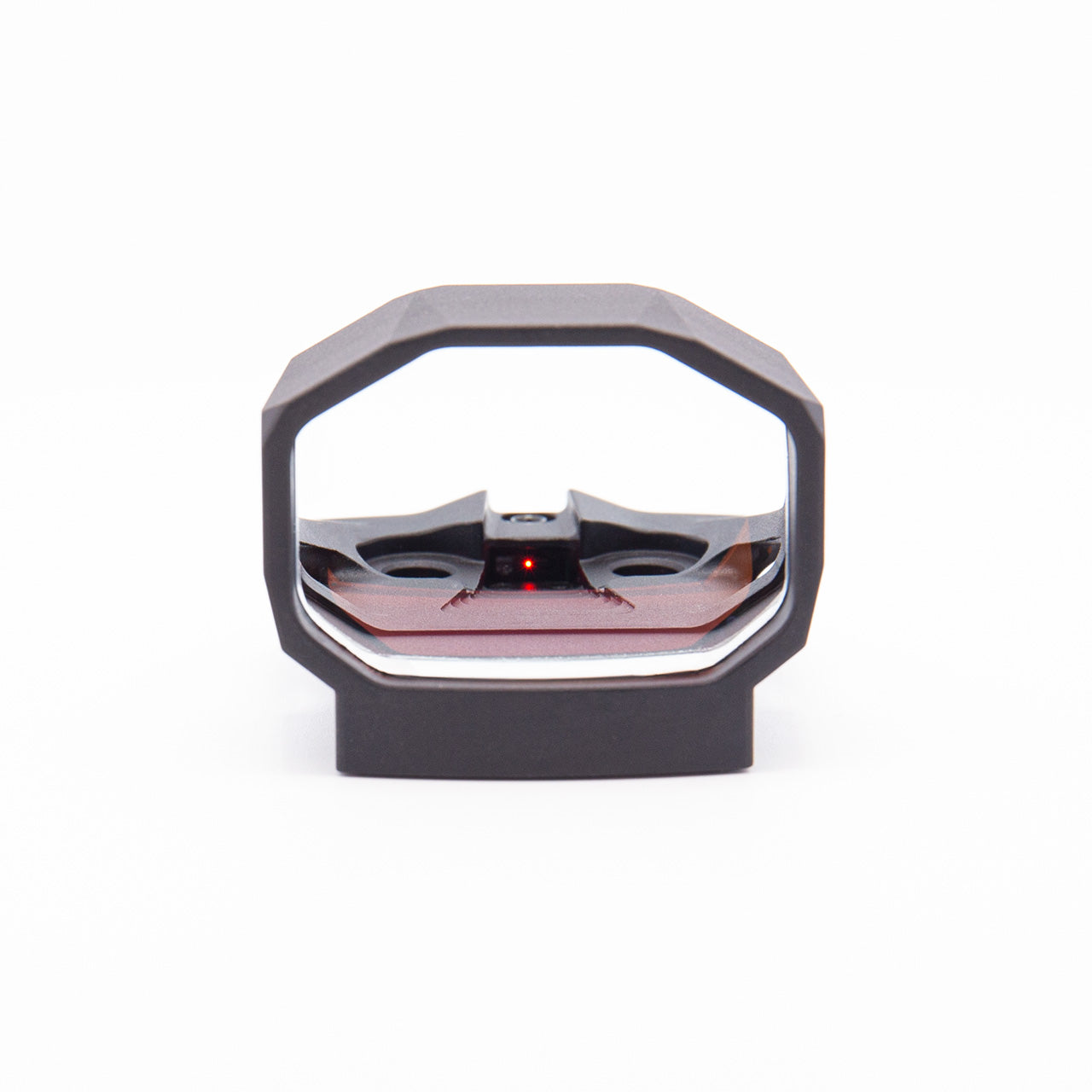

- Light Source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
- Red Dot Size Options: 4 MOA, 8 MOA, 65/2 Ring and Dot.

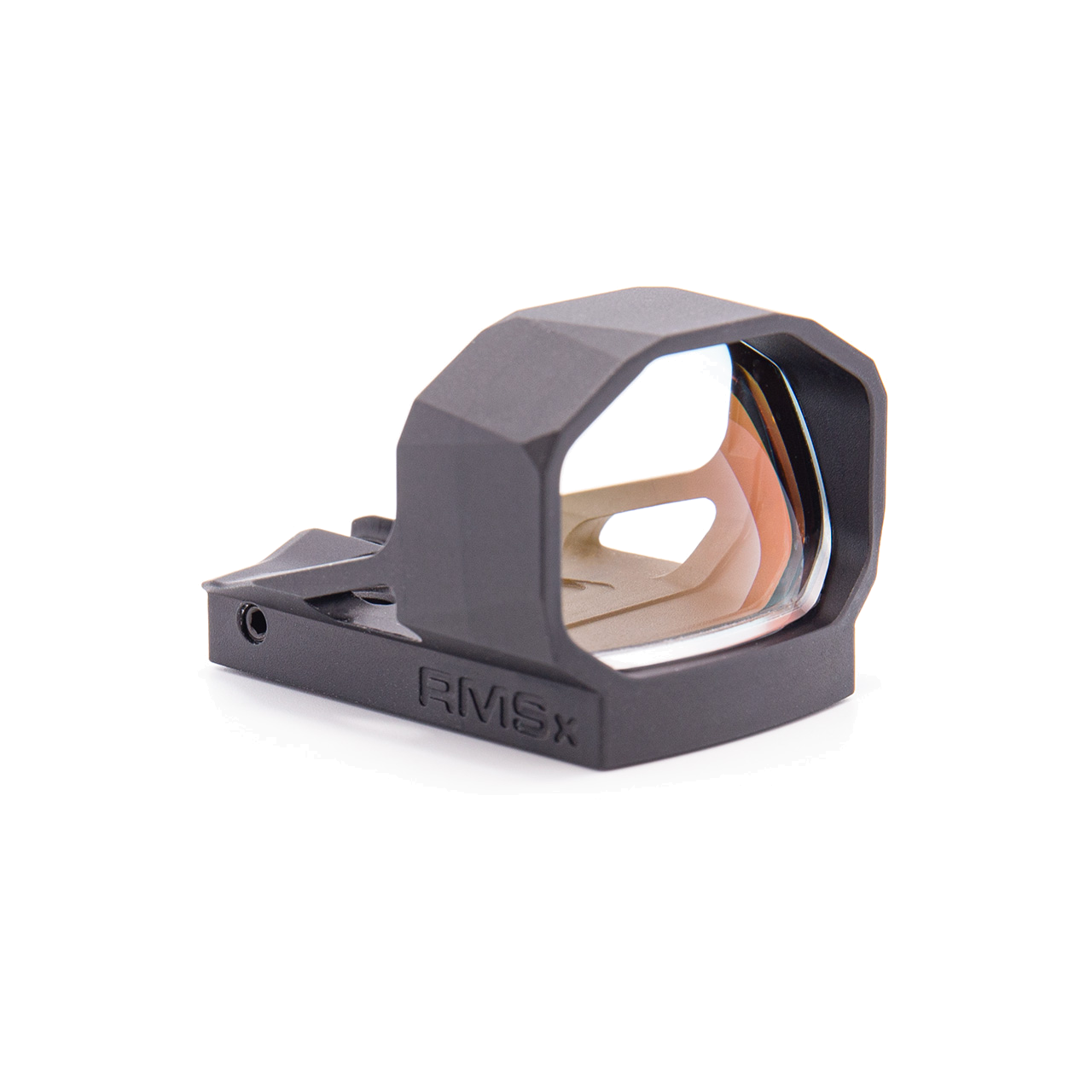

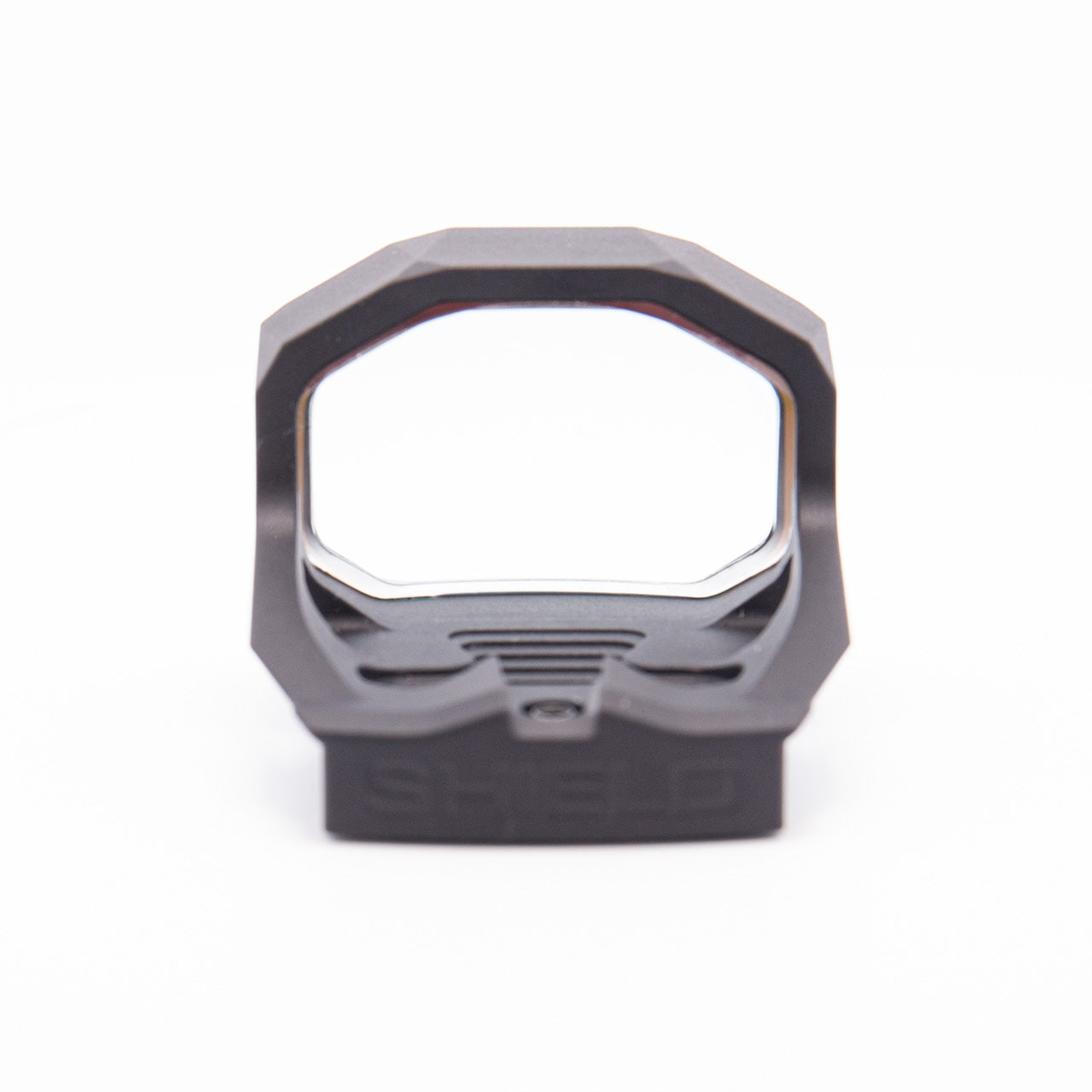

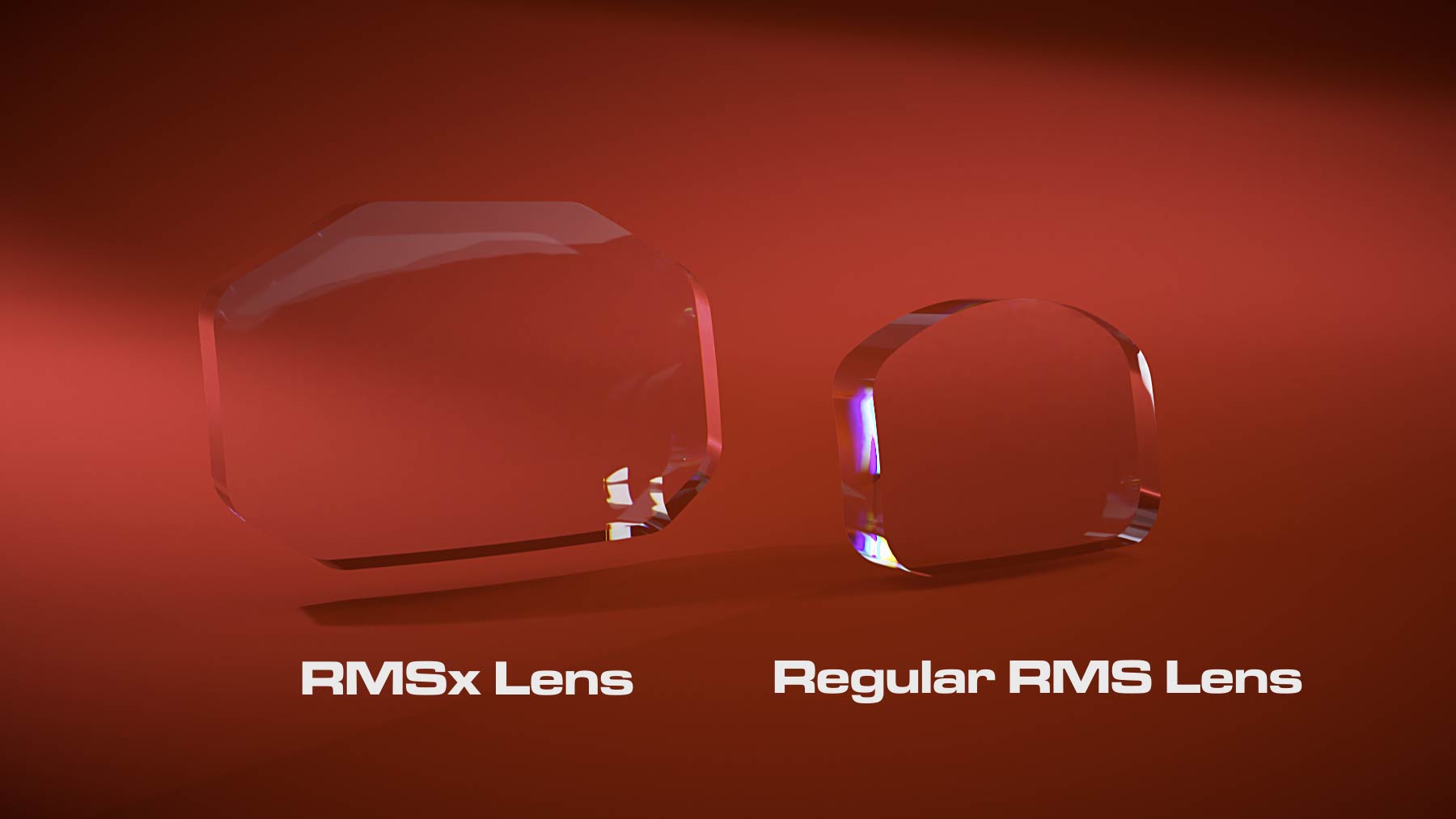

- Lens: Octagon-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
- Lens Coating: Hard coating with anti-reflective, color-free coating that minimizes visible signature.
Electronics
- Battery: One 3V lithium metal battery, CR2032.
- Battery Life: 20,000 hours in average daylight with a CR2032.
- Battery Fitting: Underneath.
- Brightness Range:
- Lowest: Compatible with Night Vision.
- Highest: Visible against the sky in bright daylight.

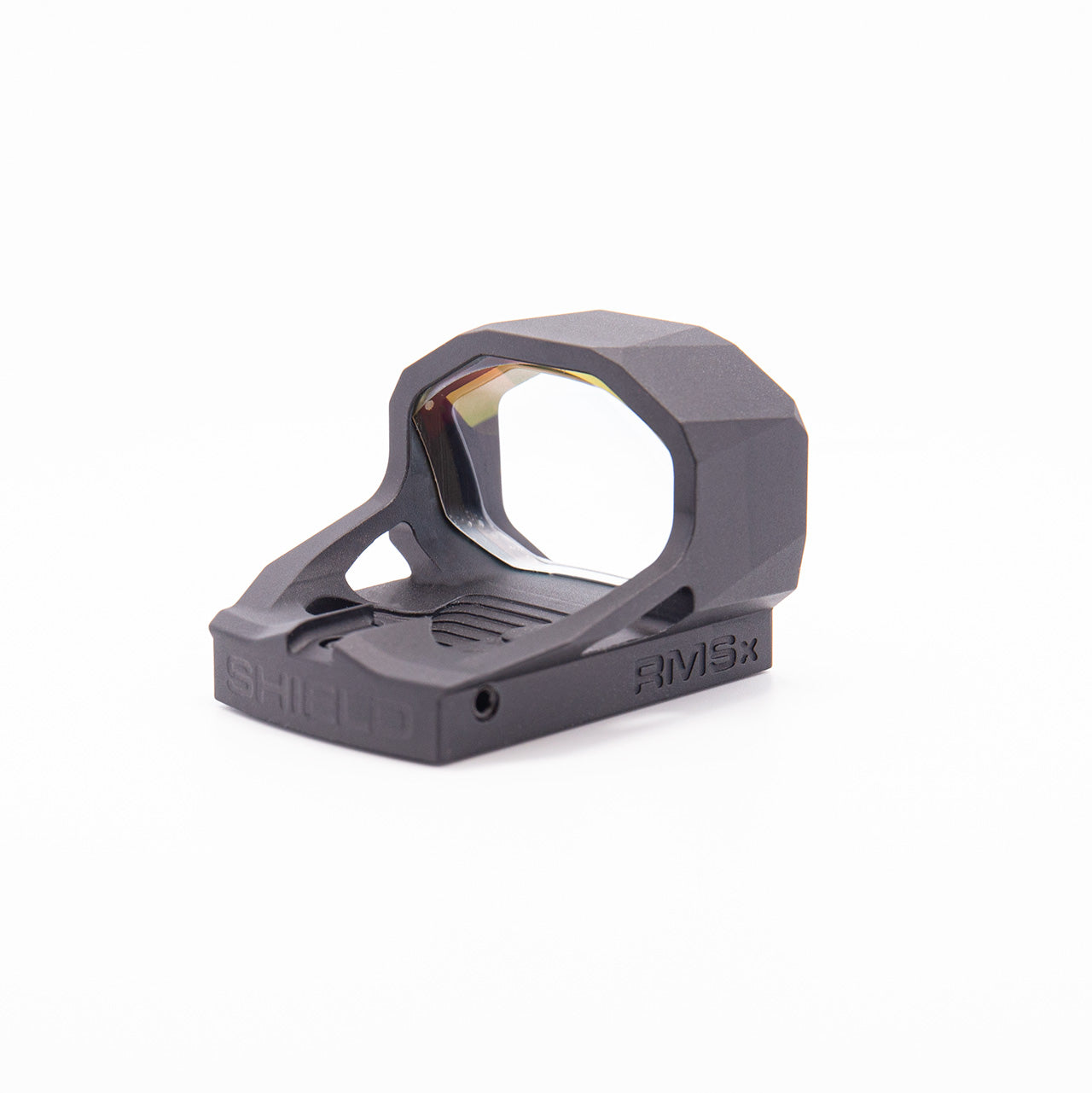

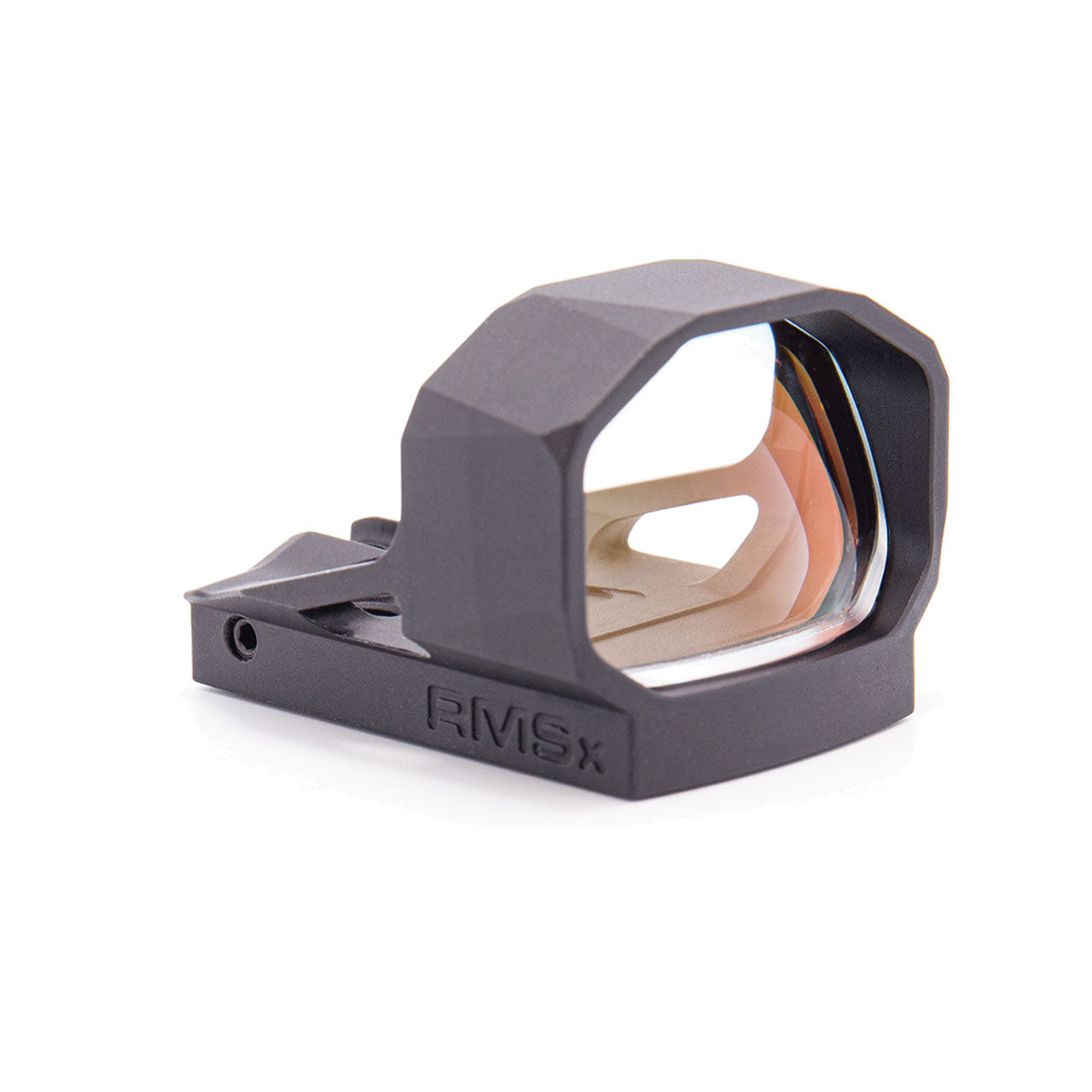

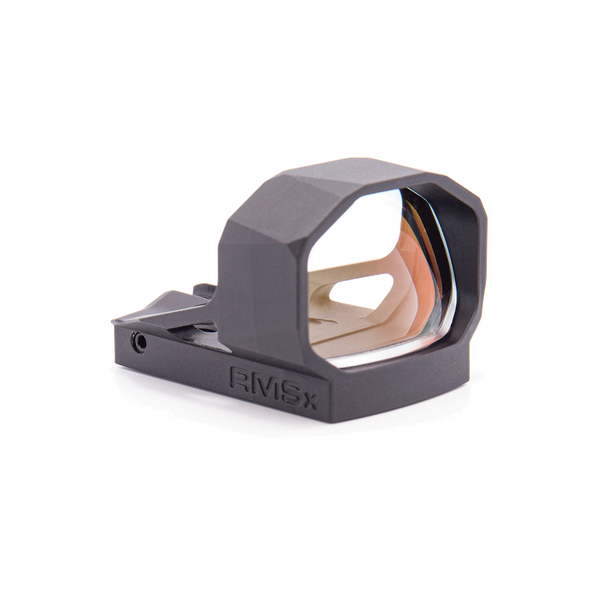

Exterior
- Housing Material: Aluminum.

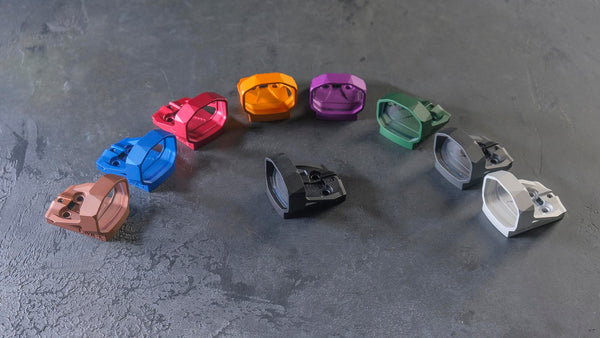

- Color: Matte black.
- Dimensions: Sight only (L x W x H): 40.8 mm x 34 mm x 27.3 mm (1.61″ x 1.34″ x 1.07″).
- Weight: 28.6 grams / 1 ounce (excluding battery).

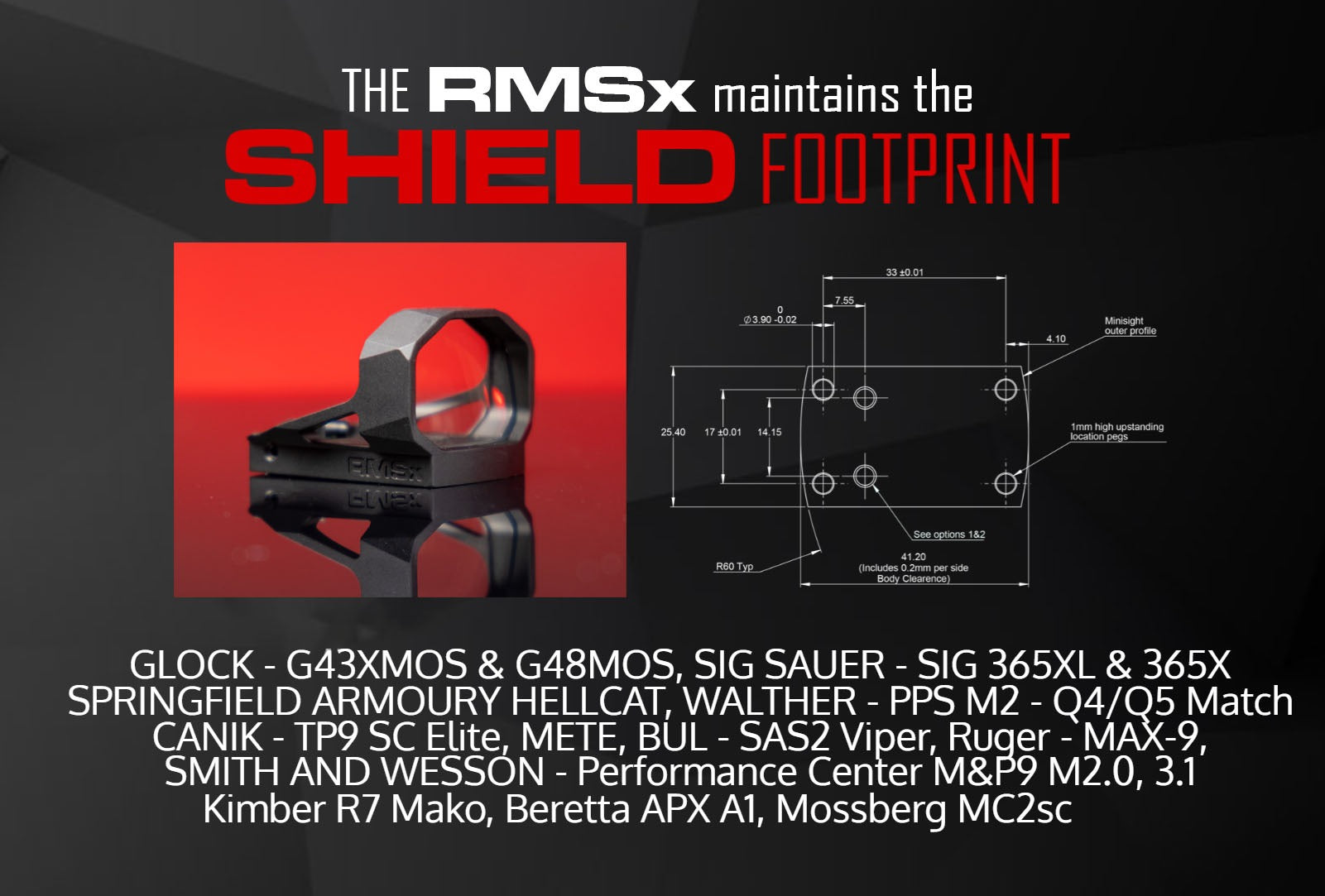

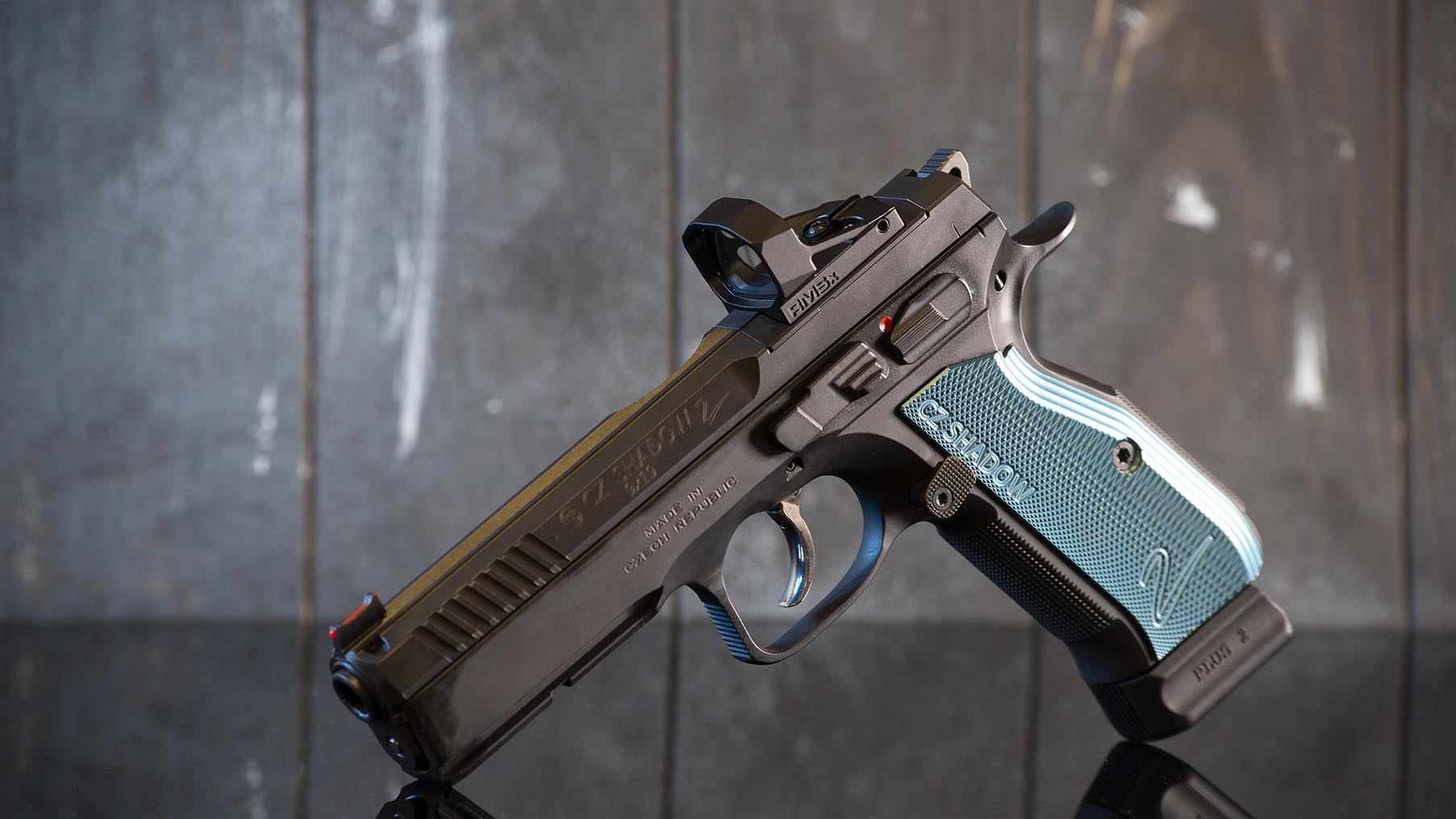

- Mount: The SHIELD footprint – 100+ mounting solutions.
- Water Immersion: 3 feet for 30 minutes (IP67).
Accessories - What's in the Box

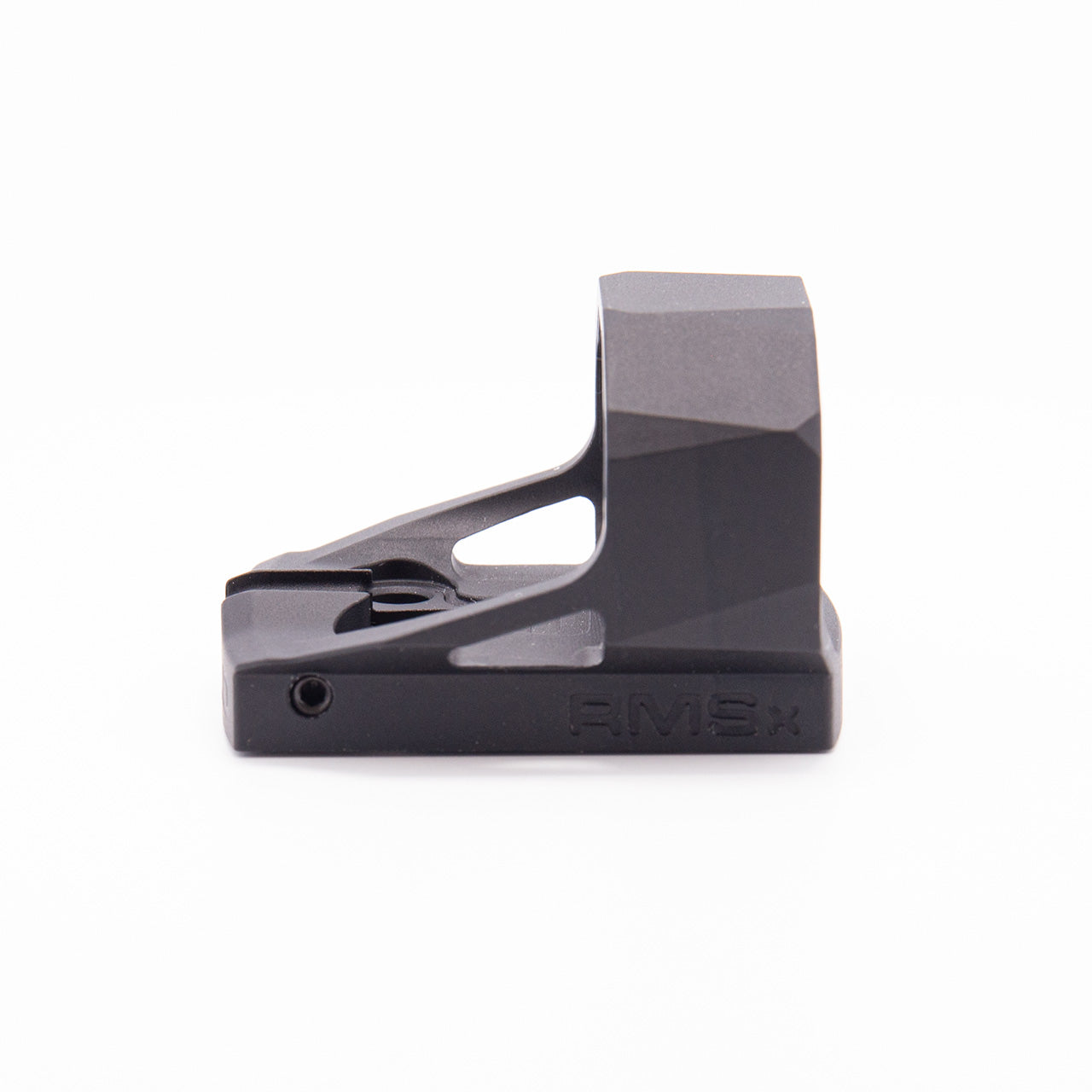

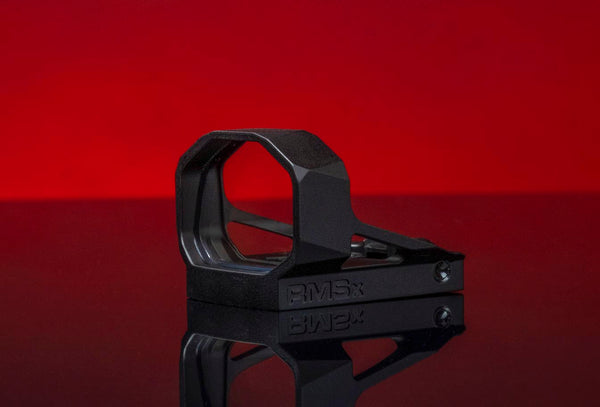

SHIELD RMSx Sight
- 1 x Mini dial
- 1 x CR2032 battery
- 1 x 1° shim
- 2 x Button head M4x8mm screws
- 2 x Button head M4x10mm screws
- 1 x 1.5 Hex wrench tools
- 1 x 2.5 Hex wrench tools
- 4 x 0.5mm Nylon washers
- 1 x Reece’s Law Battery Cover
- 2 x Battery stickers
- 2 x Shield Target Stickers

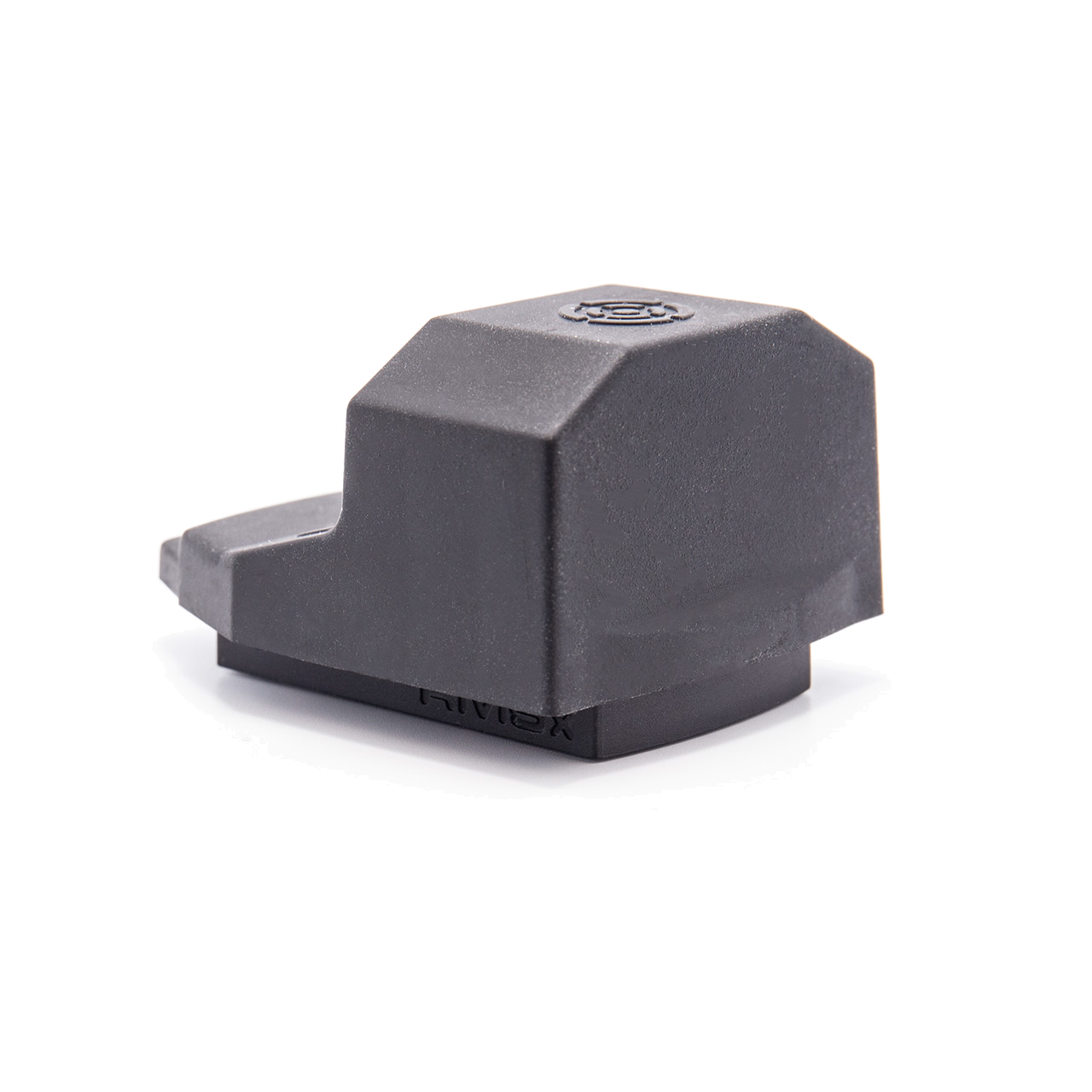

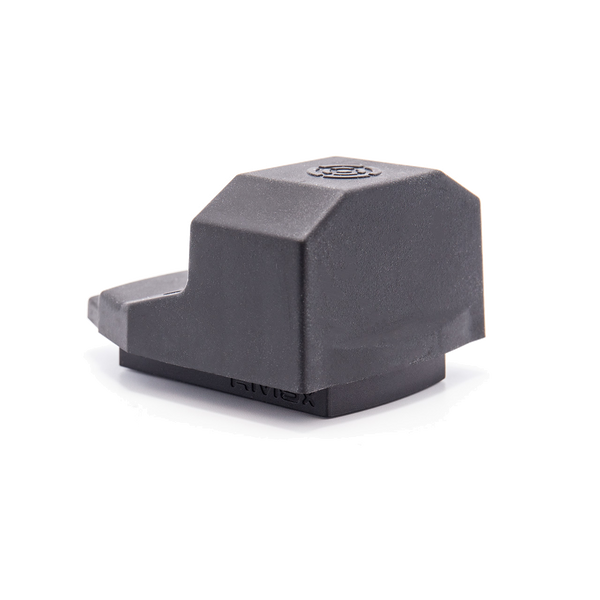

- 1 x RMSx Cover
