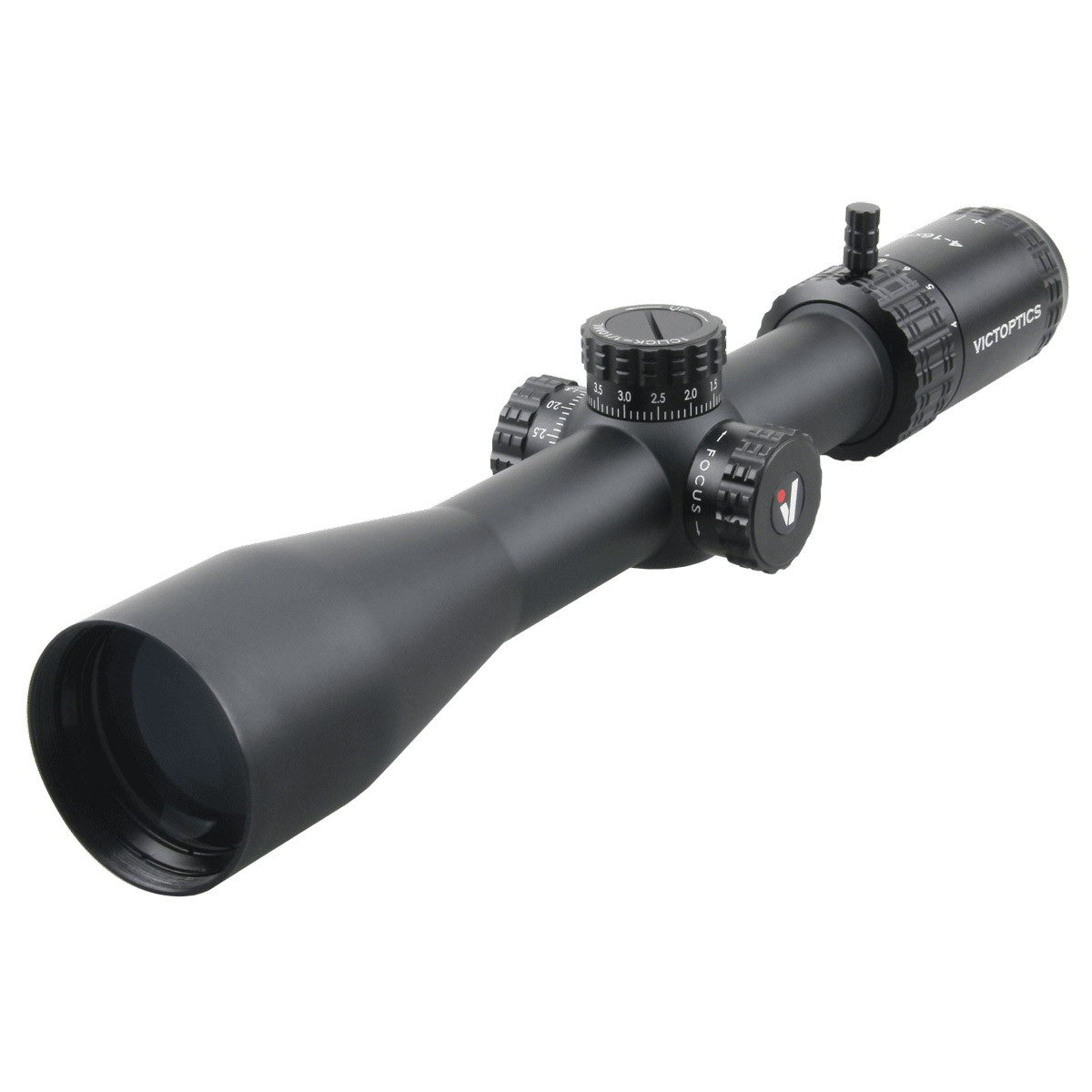

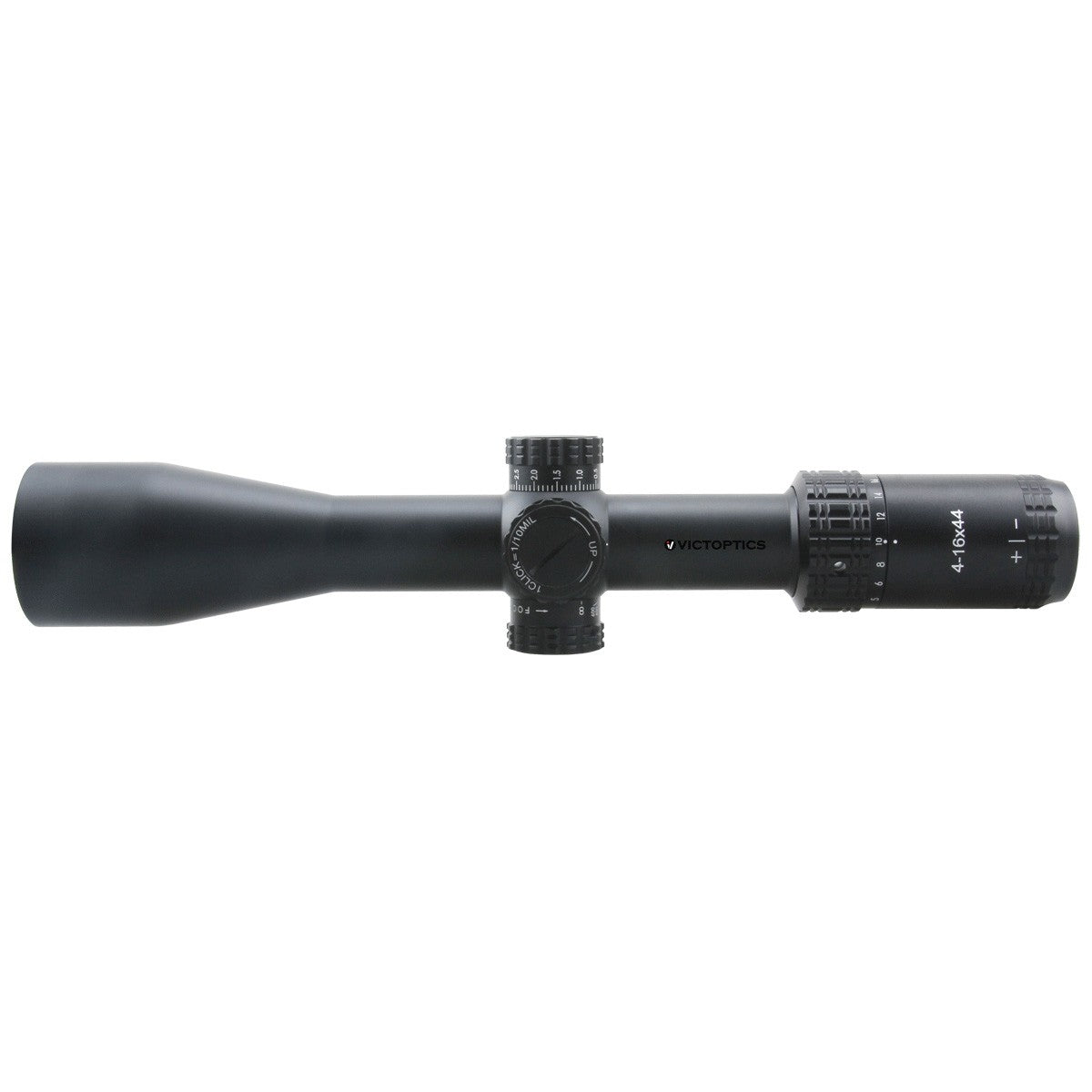

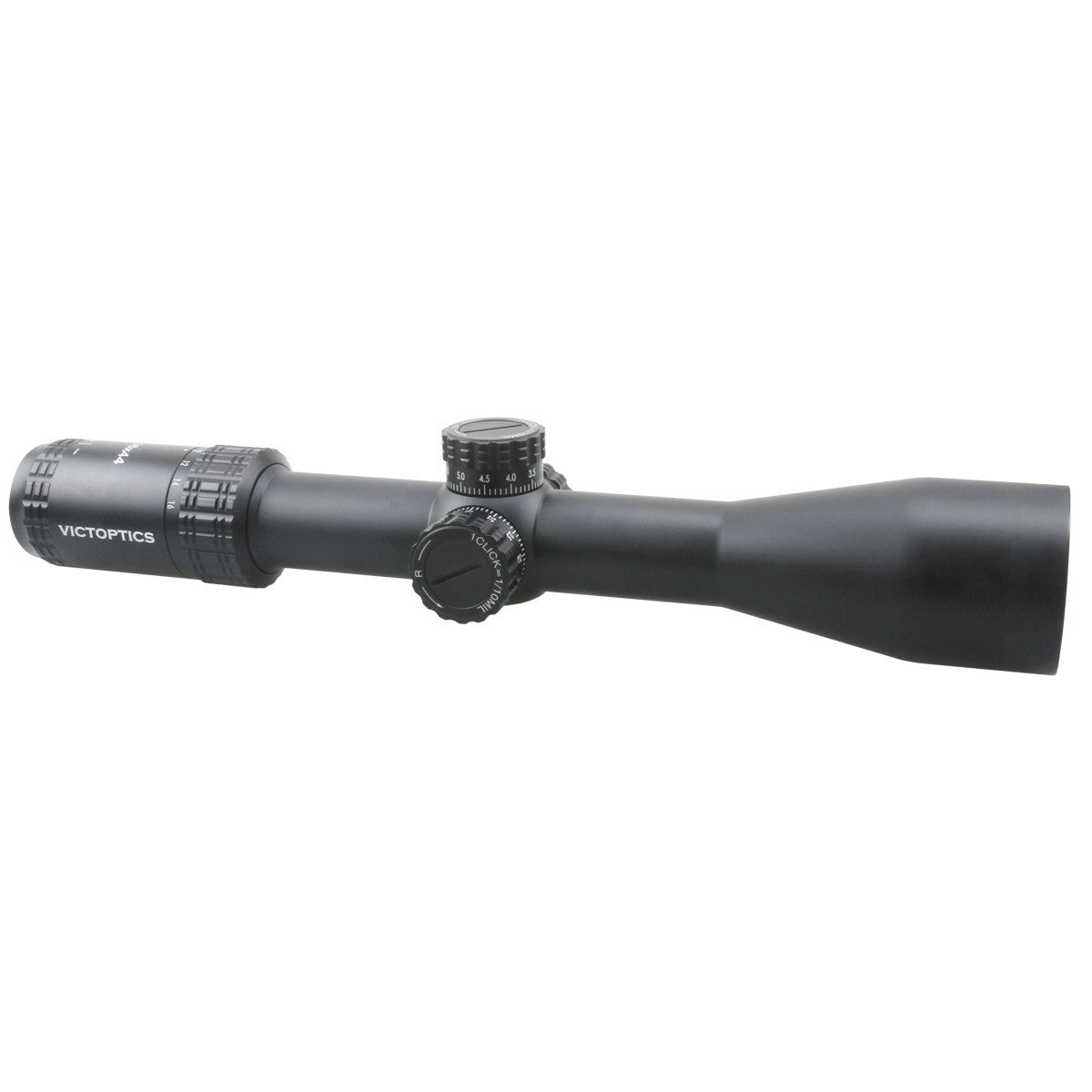

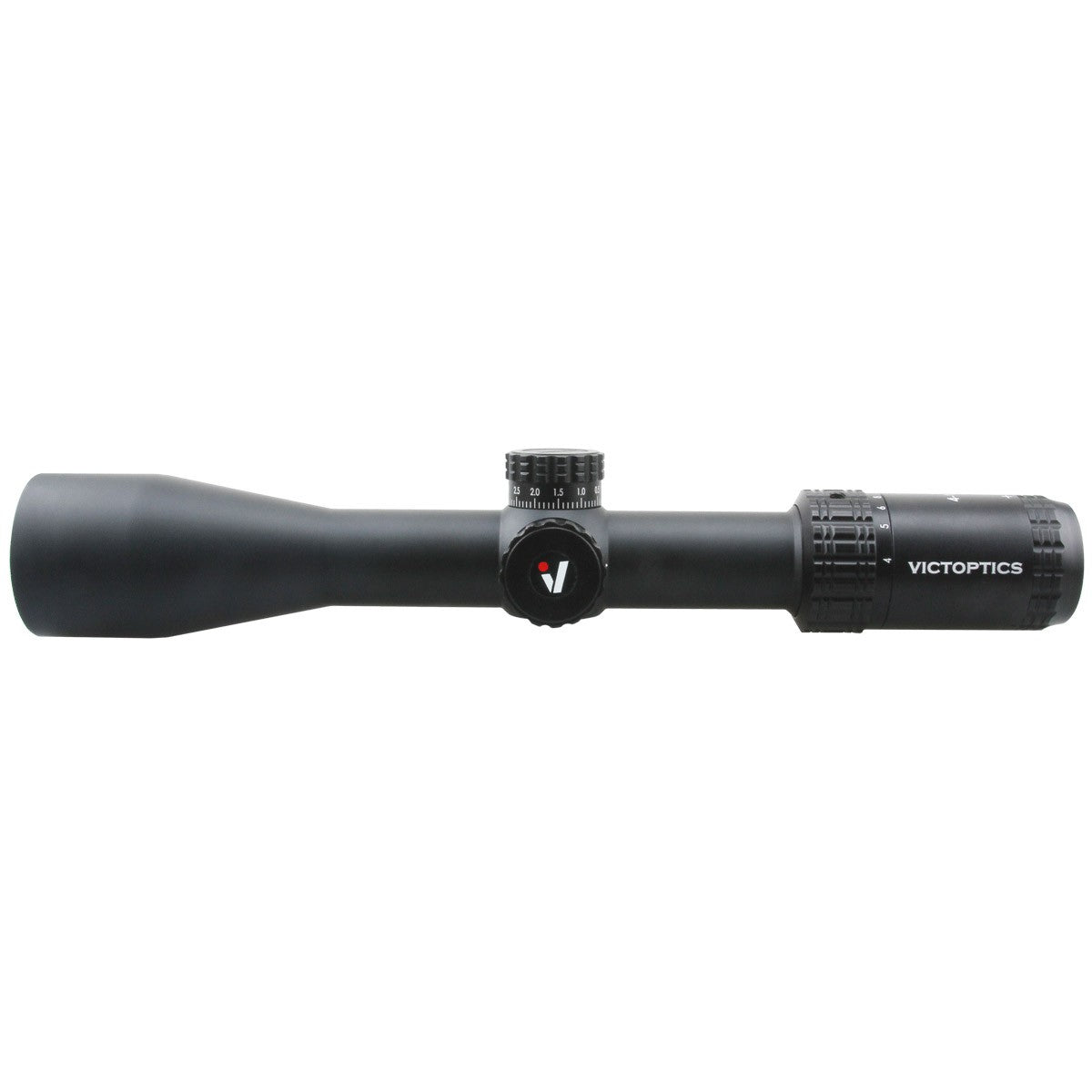

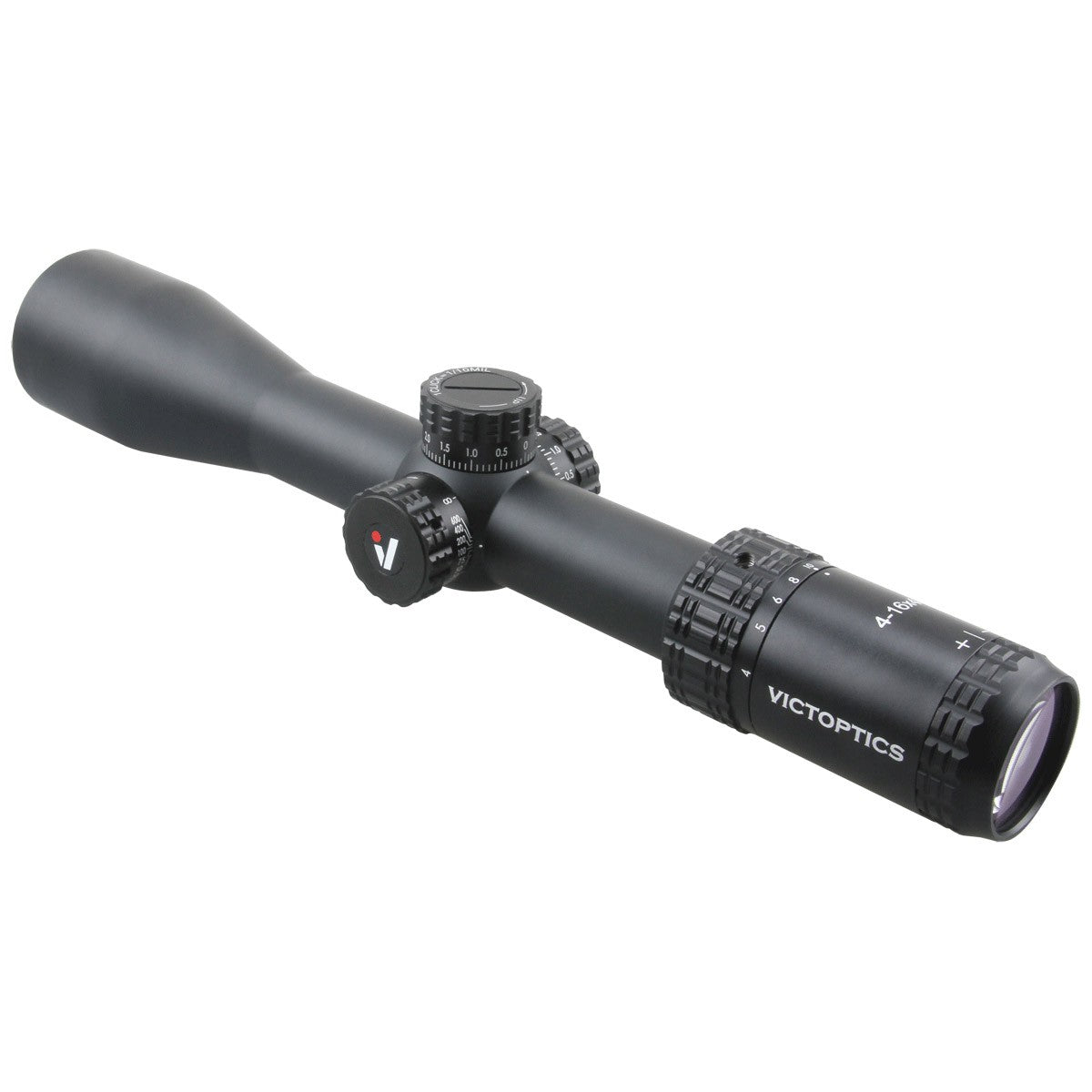

Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature

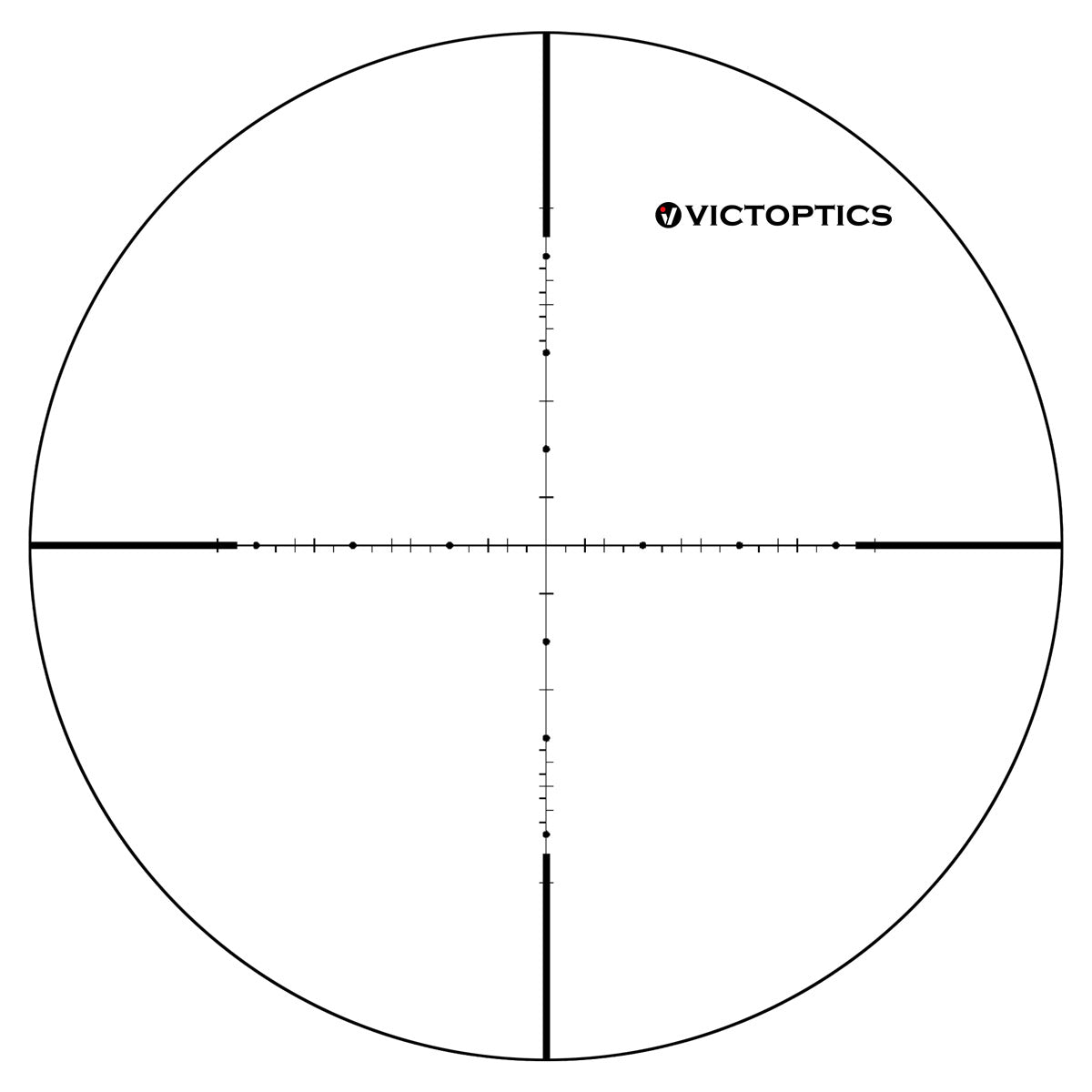

WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Fire Arms
Long Eye Relief, 30mm Monotube, Wide Field of View, Side Focus Min at 12 Yds, Power Ring Lever Mount
- Magnification: 4-16x
- Objective Lens: 44mm
- Ocular Lens Dia: 35mm / 1.4 inch
- Ocular Length: 58mm / 2.3 inch
- Exit Pupil: 11.0-2.75mm
- Tube Diameter: 30mm
- Length: 315mm / 12.4 inch
- Weight (net): 530g / 18.7oz
- Eye Relief: 96mm / 3.8 inch
- Field of View (@100yds)" 28.8-7.2 feet
- Optics Coating: Fully-multi coated
- Reticle: MDL wire reticle
- Click Value: 1/10MIL
- Evaluation Range: 15MIL
- Windage Range: 15MIL
- Parallax Adjustment: 12 Yds to infinite
- Finish: Black matte
- Illumination: N/A
- Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting

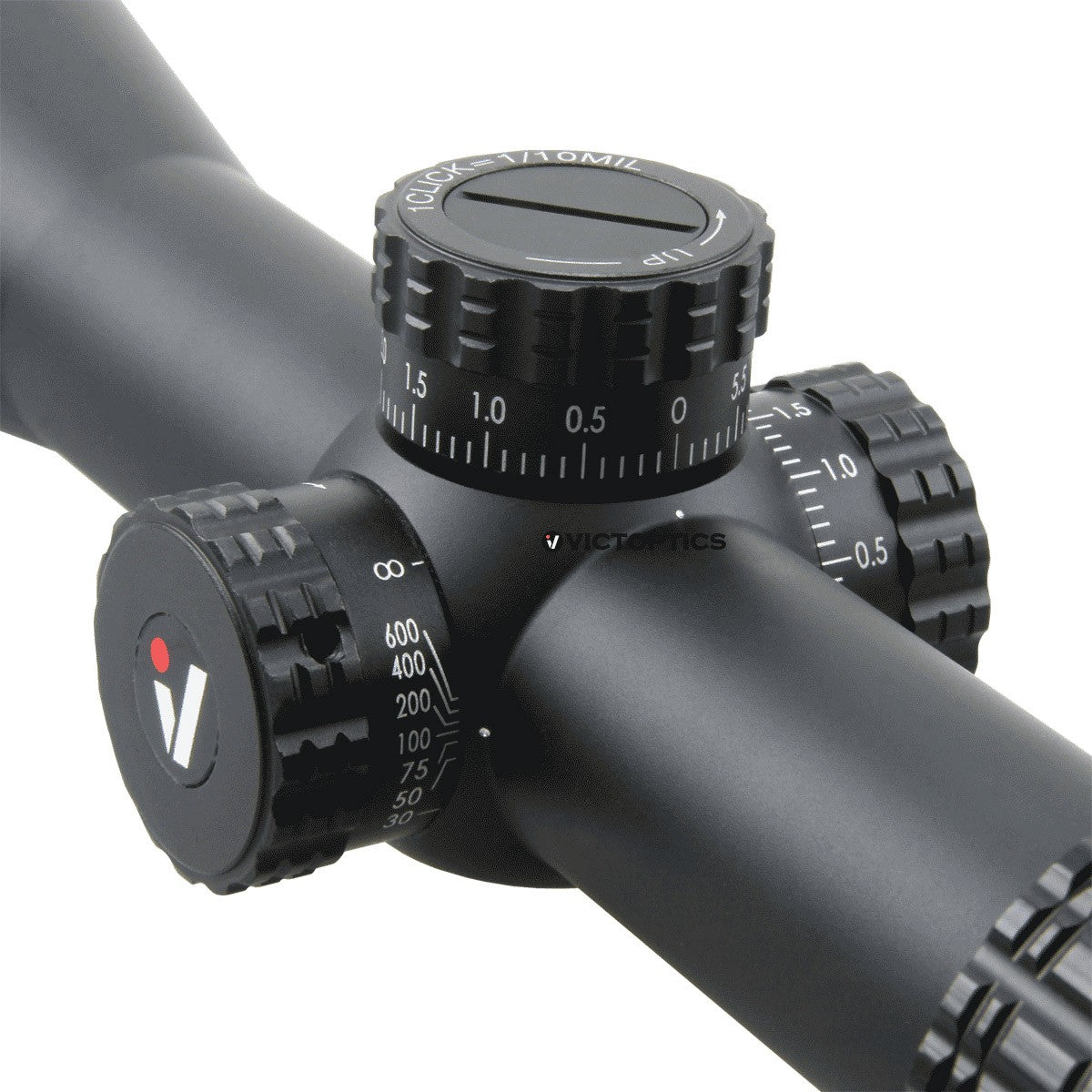

- Side focus knob marked 12, 15, 20, 25, 30, 50, 75, 100, 200, 400, 600 yards to infinite
- Distance between objective lens part and middle turret: 51mm (2.0 inch)
- Length of middle turret part: 34mm (1.3 inch)
- Distance between middle turret parts to power ring: 54mm (2.1 inch)
- Shock tested to 750g, water resistant and fully nitrogen purged

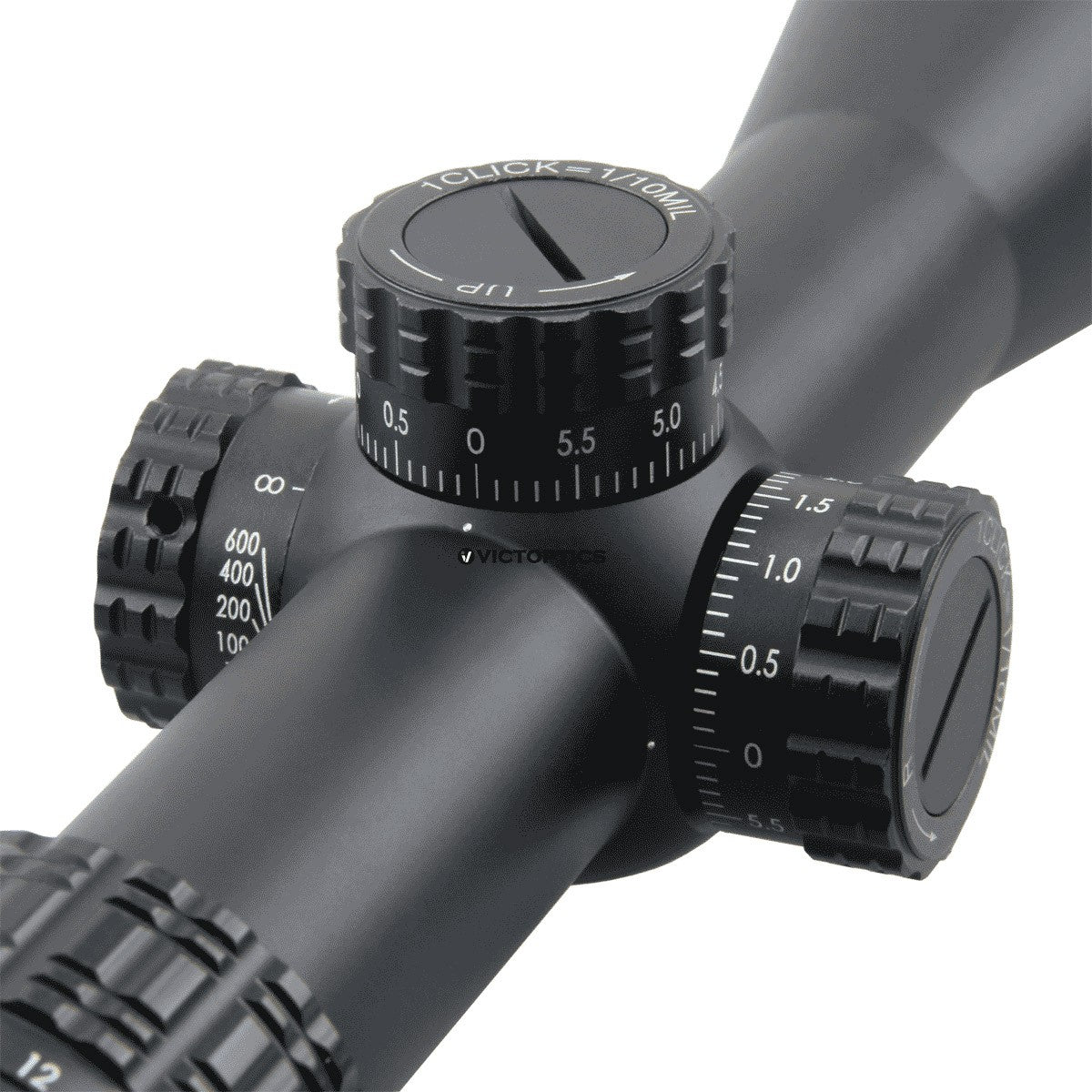

- Turret lock system. Pull to adjust, Depress to lock.
- High quality 6061 T6 aircraft grade aluminum
- Diopter compensation from fast-focus eyepiece -2 to +2

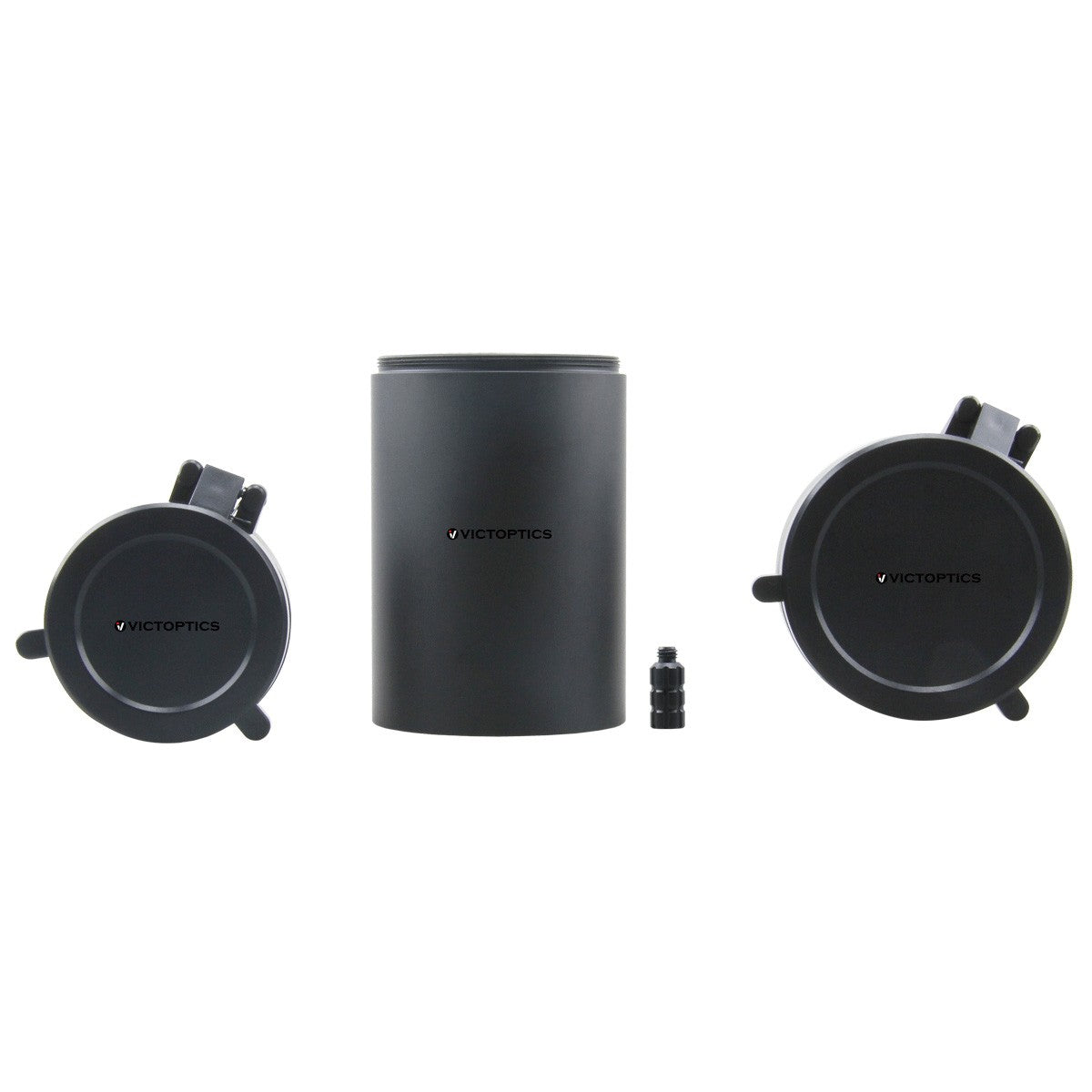

- Including items: 30mm weaver rings (default) or dovetail mount ring (on request only), power ring lever mount, 3 inch sunshade, cleaning cloth, instruction, lens flip-up caps and packed in nice retail box
